Muti-function hitching
BT
SKIP FOR TELESCOPIC FORK-LIFT

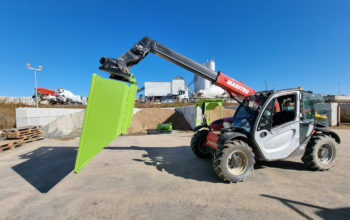

Dumping by simply tilting the forks Max load 2000 kg Reduced height Automatic locking at the forks heels Suitable for low applications (demolition rubbe, mortar, grape pomace under the press, waste under machines, etc...)
automatic safety
easy to fill
ideal on a telecopy cart
— Capacities 675 – 1000 – 1200 litres
— Folded 3mm sheet metal bucket
— Front chute for easy emptying
— Tilting by tilting the telescopic truck apron
— Automatic safety features at fork heels for ISO forks without hydraulic
translator (thickness 50 mm maximum)
— No pallet truck passage
— Closed fork sleeves, truck connection and centre-distance (F) can be
modified to order
— For safety reasons, it is forbidden to shake the bucket in the vertical position
— Options: Sealed body, crane hitching on 4 corner loop and galvanized version
— For made to measure – contact us
For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
CHOOSE YOUR REFERENCES
| Capacity litres | Load kg | A | B | C | I | D | F | Fork sleeves ins. | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 675 | 1500 | 1730 | 1494 | 1200 | 1120 | 590 | 800 | 170 X 70 | 145 | BTP07000 | Select one or more product references to request a quote |
| 1000 | 2000 | 1730 | 1494 | 1745 | 1660 | 590 | 800 | 170 X 70 | 175 | BTP10000 | Select one or more product references to request a quote |
| 1200 | 2000 | 1730 | 1494 | 2080 | 1995 | 590 | 800 | 170 X 70 | 193 | BTP12000 | Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
Leak proof skip
4 lifting lugs
Other finishing
Tarpaulin or netting
Can't find the model that's right for you?
Made to measure
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
