GVT

Hydraulic bulk bucket load 1 T. to 1.5 T.

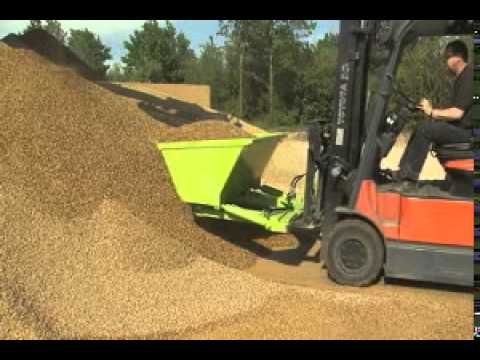

For use with forklift. For loading products (grain, chips, fertilisers, sand, etc.) from ground level.

Gamme hydraulique

hydraulic


Gamme Essentiel Goubard

essential

Range “Essentielle” : simplified design without compromising on safety and reliability!

  • Capacity : 0.25 to 1.1 m3
  • 5 mm heavy-duty scoop
  • Articulation joints have bearings and grease nipples
  • Hydraulic connection with 2 double-acting cylinders (hoses with 3/8 male connectors)
  • Safety chain included in all those hydraulic buckets for forklift
  • Option interchangeable blade
  • For more information, download the technical sheet below.
SHOW MORE INFORMATION

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CHOOSE YOUR REFERENCES

Capacity m³ Load kg Overall depth Bin depth Scoop width Centre interior height Center to center forks Fork sleeves ins. 1200 Fork CDG Weight kg Reference
0.25 1000 1285 720 1130 340 700 170 x 70 1050 140 GNP02001 Select
one or more product references
to request a quote
0.5 1000 1384 950 1240 510 700 170 x 70 1080 230 GNP05001 Select
one or more product references
to request a quote
0.8 1500 1620 1230 1500 700 800 170 x 70 870 377 GNP08002 Select
one or more product references
to request a quote
1 1500 1620 1230 1750 700 900 170 x 70 870 407 GNP10002 Select
one or more product references
to request a quote
1.1 1500 1620 1230 2000 700 900 170 x 70 870 440 GNP11002 Select
one or more product references
to request a quote
Icone information

On your quote request manually add
in the comments, the option you need

Other color

Other finishing

Can't find the model
that's right for you?

We are adapting!

REQUEST A SPECIFIC MODEL
