Hydraulic tilting on tipping skip
GA

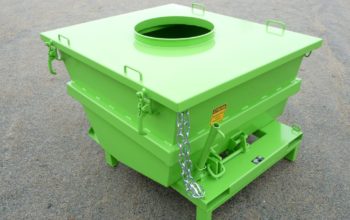

Vaccum-ready tipping skip
Waste collector for vacuum extractor. Withstands up to 40 kPa. Versatile connections.
ATEX compatible
high pressure resistance
easy to fill
- Capacity : 520 litres
- Leak-proof bin : 3 and 4 mm sheet
metal with non-deformable reinforcements - Automatically unlocks and tips. Lever for manual tipping
- Pedestal-mounted models can be used with pallet trucks (under fork sleeves)
- Castor-mounted models (forward movement) have a handrail and 2 fixed + 2 pivoting Ø125 mm alu/ polyurethane castors
- For customised products, please contact us
- Safety chain included
- For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Capacity litres | Load kg | Castors Ø | A | B | C | I | D | F | Fork sleeves ins. | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 520 | 1200 | 1370 | 1160 | 1200 | 1000 | 820 | 700 | 165 x 55 | 205 | GAP05000 |
Select one or more product references to request a quote |
|
| 520 | 1200 | 125 | 1370 | 1160 | 1200 | 1000 | 850 | 700 | 165 x 55 | 215 | GAP05121 |
Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
Hydraulic tipping
Other finishing
Deceleration cylinder
Special sleeves
Can't find the model that's right for you?
Made to measure
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
