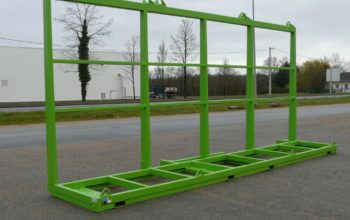

CH 1

Easel maximum load 3000 kg

For safely handling and transporting joinery, plates, etc. Approved by inspection authority. 3 models.

Ref. CHP15000

Easel with inclined supports
Support side rails and cross-members covered with interchangeable rubber section
Special manufacturing on request
For more information, download the technical sheet below.

SHOW MORE INFORMATION

REQUEST A QUOTE DOWNLOAD TECHNICAL SHEET

CAPACITY & DIMENSIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

ALL PHOTOS

A overall depth
B interior depth
C interior depth
I interior width
D overall height
D1 interior height
E maximum loading height
K overall height (when emptying)
F fork sleeves spacing

DOWNLOAD TECHNICAL SHEET

CHOOSE YOUR REFERENCES

Load kg	A	B	C	I	D	D1	F	Fork sleeves ins.	Weight kg	Reference

3000	1700	580	2120	2000	2430	2130	800	170 x 70	305	CHP15000	Select one or more product references to request a quote
