Lifting beam for emptying CP skips
Handling by forks of forklift truck. 2 models : Upper and lower grip. Approved by body of control.
proven
modular
ATTENTION : Prior to use, accesory + forklift acceptance procedures must be carried out by your authorised inspection body.
LG – Lower Grip
- Use this model when forklift height is insufficient
- Centre of gravity : 1750 mm (check forklift load capacity)
- Hooks onto CP skip side-trunnions
- Delivered with safety chain
- For more information, download the technical sheet below.

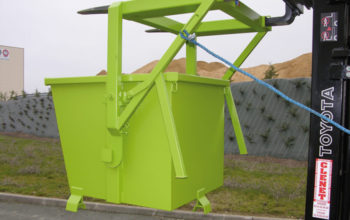

UG – Upper Grip
- Standard model used with a CP bin
- Support foot for horizontal stability
- Hooks onto CP skip side-trunnions
- Delivered with safety chain
- For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Capacity litres skip CP | L | C | K | F | Fork sleeves ins. | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|
| UG Model - Upper Grip | ||||||||
| 575 | 1395 | 1080 | 1745 | 765 | 170 x 70 | 60 | PLP09000 |
Select one or more product references to request a quote |
| 700 | 1495 | 1080 | 1825 | 765 | 170 x 70 | 60 | PLP09000 |
Select one or more product references to request a quote |
| 880 | 1495 | 1280 | 1825 | 765 | 170 x 70 | 65 | PLP10000 |
Select one or more product references to request a quote |
| 1000 | 1495 | 1420 | 1825 | 765 | 170 x 70 | 76 | PLP11000 |
Select one or more product references to request a quote |
| LG Model - Lower Grip | ||||||||
| 575 | 2205 | 1185 | 715 | 785 | 170 x 70 | 110 | PLP20000 |
Select one or more product references to request a quote |
| 700 | 2305 | 1185 | 855 | 785 | 170 x 70 | 110 | PLP20000 |
Select one or more product references to request a quote |
| 880 | 2305 | 1380 | 855 | 785 | 170 x 70 | 114 | PLP30000 |
Select one or more product references to request a quote |
| 1000 | 2305 | 1520 | 855 | 785 | 170 x 70 | 117 | PLP40000 |
Select one or more product references to request a quote |
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
