AT
Trailer for forklift trucks
Safe movement of mobile homes, caravans, etc... Movement on internal transportation tracks. Forks held in sleeves with an internal cross-section of 170 x 70 mm, 800 mm distance between sleeves. Fork base locking system with removable pin.
handy

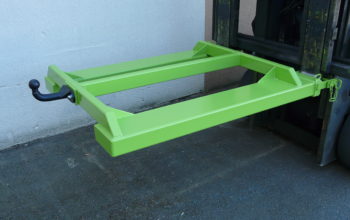

Ref. ATP10000
— Model equipped with a rightangled ball coupling
— Enables a wide range of movement
— Vertical static load on the ball : Max. 120 kg
— Towable weight : Max 2T
— Weight 79 kg
Ref. ATP12000
— Model equipped with a combination jaw pin with one ball coupling
— Can be handled via a coupling ball or ring
— Max. Static vertical load :
• On the ball coupling : 120 kg
• On the jaw : 120 kg
— Max. towing weight :
• On the ball coupling : 1.5T
• On the jaw : 3.5T
— Weight 80 kg
Ref. ATP15000
— Model equipped with a reinforced mixed hook
— Prized by professionals for its safety and robustness
— Usable for trailers with ring and with coupling head
— The mixed hook with its nippers and coupling allows 2 uses
— Reinforced attachment to the heels of the forks
— Static vertical load on the ball hook: 375 kg
— Maximum towable load on the ball hook: 3T5
— Weight 83 kg
For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Weight kg | Reference | |
|---|---|---|
| 79 | ATP10000 | Select one or more product references to request a quote |
| 80 | ATP12000 | Select one or more product references to request a quote |
| 83 | ATP15000 | Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
Other finishing
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
