Hydraulic tilting on tipping skip
SQ
Open tipping skip for heavy loads
Perfect for sheep metal frames and other flat products. Automatic release. Reinforced for heavy loads.
for long loads
for heavy loads
- Capacity : 580 to 990 dm3
- Models correspond to standard sheet metal sizes : 1000×2000 – 1250×2500 – 1500x3000mm

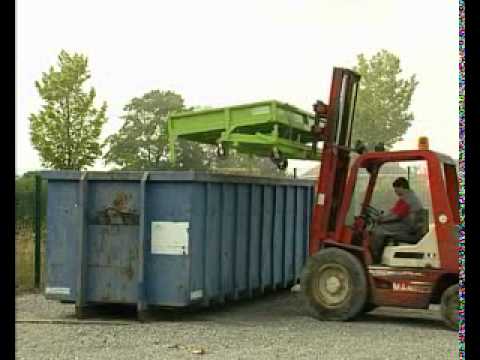

- Automatically unlocks and tips on contact. Lever for manual tipping (demountable lever)
- Double locking hooks
- Springs and pads dampen end of tipping process
- Hinged door on requet
- Fork sleeves can be modified on request :
5 mm sheet metal. Aperture 170 x 70 mm
and spacing (F) : 900 mm - Pedestal-mounted models can be used with pallet trucks (between fork sleeves)
- Castor-mounted models (lateral movement)
have 2 fixed + 2 pivoting cast iron/
polyurethane castors on chassis - Options on request
- For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Capacity dm³ | Load kg | Castors Ø | A | B | C | I | D | D1 | E | F | 1200 Fork CDG | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 580 | 2500 | 1295 | 1100 | 2230 | 2100 | 620 | 250 | 370 | 900 | 920 | 320 | SQP06000 |
Select one or more product references to request a quote |
|
| 580 | 2250 | 160 | 1295 | 1100 | 2230 | 2100 | 715 | 250 | 465 | 900 | 920 | 340 | SQP06162 |
Select one or more product references to request a quote |
| 880 | 2500 | 1535 | 1350 | 2730 | 2600 | 620 | 250 | 370 | 900 | 940 | 396 | SQP09000 |
Select one or more product references to request a quote |
|
| 880 | 2250 | 160 | 1535 | 1350 | 2730 | 2600 | 715 | 250 | 465 | 900 | 940 | 417 | SQP09162 |
Select one or more product references to request a quote |
| 990 | 3000 | 1785 | 1600 | 3230 | 3100 | 570 | 200 | 370 | 900 | 920 | 470 | SQP10000 |
Select one or more product references to request a quote |
|
| 990 | 2800 | 200 | 1785 | 1600 | 3230 | 3100 | 710 | 200 | 510 | 900 | 920 | 507 | SQP10202 |
Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
Other finishing
Special sleeves
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
