Full bottom emptying. Best size/capacity ratio. With patented heel...
CAP

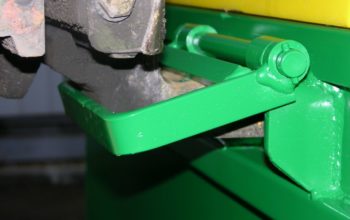

Drop bottom skip with heel cage safety
FAP-C
Drop bottom skip with polyethylene lid
2 capacities 1280 or 2570 litres, with or without castors. In standard : automatic anti-slip fork-blocking devices, opening limiter, and automatically unlocks and tips on contact.
total safety
secure emptying without offset
lid
Modèle CAP
- Upper fork aperture 160 x 60 mm
- Spacing (F) : 700 mm
Modèle FAP
- Upper Fork aperture 200 x 65 mm
- Spacing (F) : 780 mm
For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Capacity litres | Load kg | Castors Ø | Movement | A | B | C | I | D | K | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FAP Model | ||||||||||||
| 1280 | 1500 | 1235 | 950 | 1350 | 1150 | 1450 | 2200 | 210 | FAP13000 | Select one or more product references to request a quote |
||
| 1280 | 1200 | 150 | Fwd | 1235 | 950 | 1350 | 1150 | 1550 | 2200 | 220 | FAP13151 | Select one or more product references to request a quote |
| 2570 | 2000 | 1220 | 950 | 2500 | 2300 | 1450 | 2200 | 340 | FAP25000 | Select one or more product references to request a quote |
||
| 2570 | 1800 | 160 | Lat. | 1220 | 950 | 2530 | 2300 | 1550 | 2200 | 350 | FAP25161 | Select one or more product references to request a quote |
| CAP Model | ||||||||||||
| 1280 | 1500 | 1235 | 950 | 1350 | 1150 | 1450 | 2200 | 210 | CAP13000 | Select one or more product references to request a quote |
||
| 1280 | 1200 | 150 | Fwd | 1235 | 950 | 1350 | 1150 | 1550 | 2200 | 220 | CAP13151 | Select one or more product references to request a quote |
| 2570 | 2000 | 1220 | 950 | 2500 | 2300 | 1450 | 2200 | 340 | CAP25000 | Select one or more product references to request a quote |
||
| 2570 | 1800 | 160 | Lat. | 1220 | 950 | 2530 | 2300 | 1550 | 2200 | 350 | CAP25161 | Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
Other finishing
4 lifting lugs
Adhesive letters
THE TEST OF A UNIQUE GOUBARD OFFER
To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!
