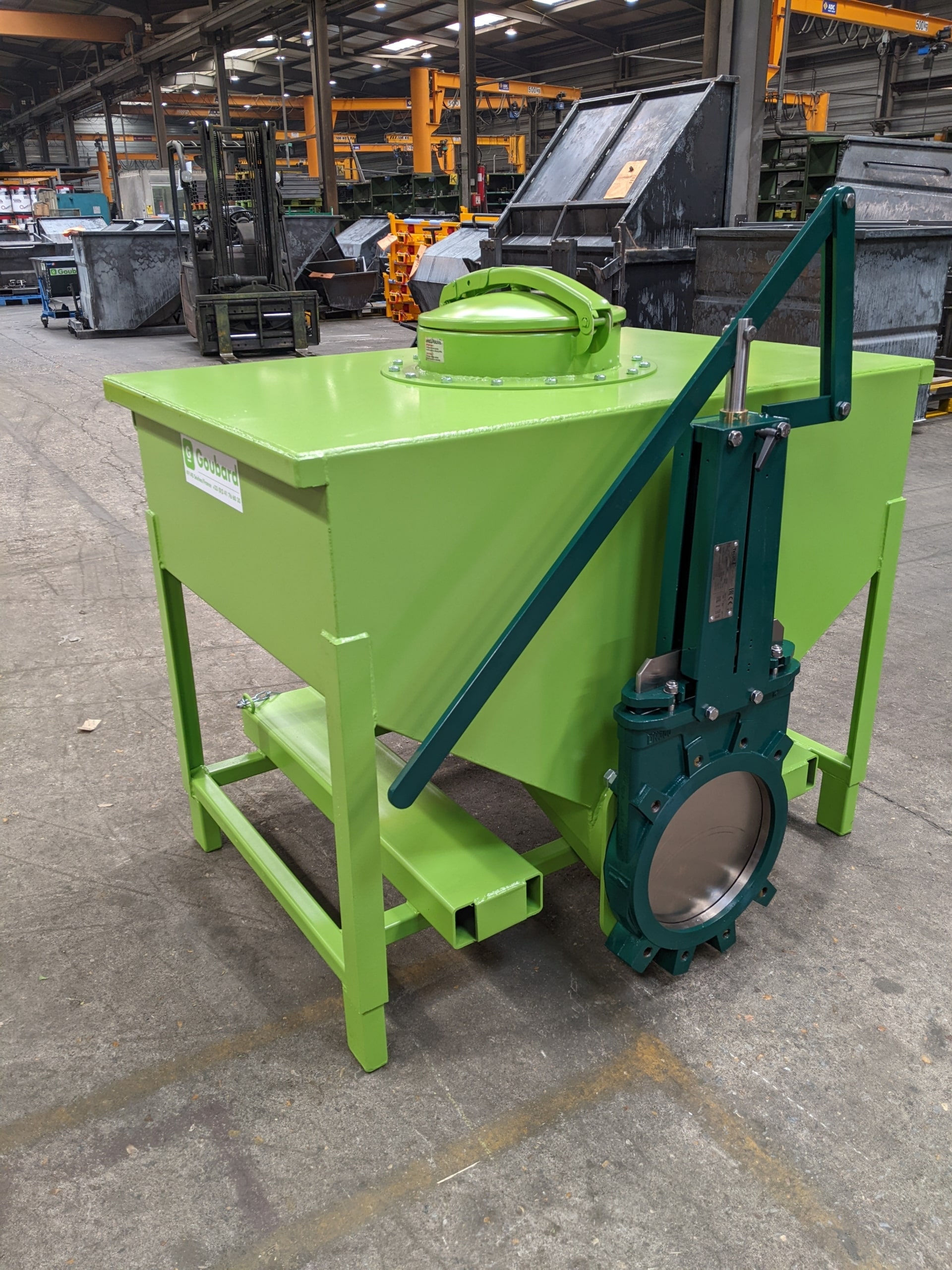

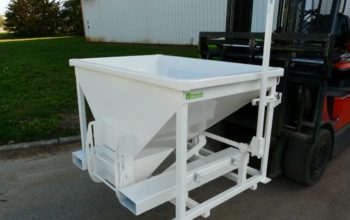

Guillotine hopper
For transport and distribution of aggregates. Central emptying through gate. Complete or partial dumping.
optional lid
ideal for powders
- Capacity from 500 to 1400 litres
- Bin : 3 mm sheet metal
- Lever locks in position for complete emptying
- Fixed-foot models are stackable
- Safety chain included

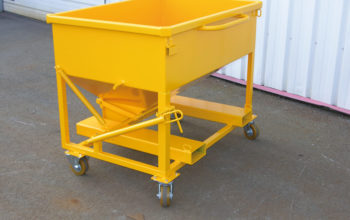

- Castor-mounted models have 2 fixed + 2 pivoting Ø125 mm alu/polyurethane castors and a handrail
- forward movement
- For customised products, please contact us
- Available options include :gate blocking device (pre-setnotches)
- For more information, download the technical sheet below.
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
- A overall depth
- B interior depth
- C interior depth
- I interior width
- D overall height
- D1 interior height
- E maximum loading height
- K overall height (when emptying)
- F fork sleeves spacing
CHOOSE YOUR REFERENCES
| Capacity litres | Load kg | Castors Ø | A | B | C | I | D | F | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 1000 | 920 | 800 | 1340 | 1200 | 970 | 700 | 160 | FGP05000 | Select one or more product references to request a quote |
|
| 500 | 1000 | 125 | 980 | 800 | 1340 | 1200 | 1030 | 700 | 170 | FGP05121 | Select one or more product references to request a quote |
| 750 | 1300 | 920 | 800 | 1340 | 1200 | 1230 | 700 | 185 | FGP07000 | Select one or more product references to request a quote |
|
| 750 | 1200 | 125 | 980 | 800 | 1340 | 1200 | 1290 | 700 | 195 | FGP07121 | Select one or more product references to request a quote |
| 1000 | 1700 | 1130 | 1000 | 1650 | 1500 | 1220 | 700 | 210 | FGP10000 | Select one or more product references to request a quote |
|
| 1000 | 1200 | 125 | 1180 | 1000 | 1650 | 1500 | 1280 | 700 | 220 | FGP10121 | Select one or more product references to request a quote |
| 1400 | 2200 | 1130 | 1000 | 1650 | 1500 | 1485 | 700 | 255 | FGP14000 | Select one or more product references to request a quote |
|
| 1400 | 1200 | 125 | 1180 | 1000 | 1650 | 1500 | 1545 | 700 | 265 | FGP14121 | Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Other color
4 lifting lugs
Lids
Other finishing
