CR-B 5

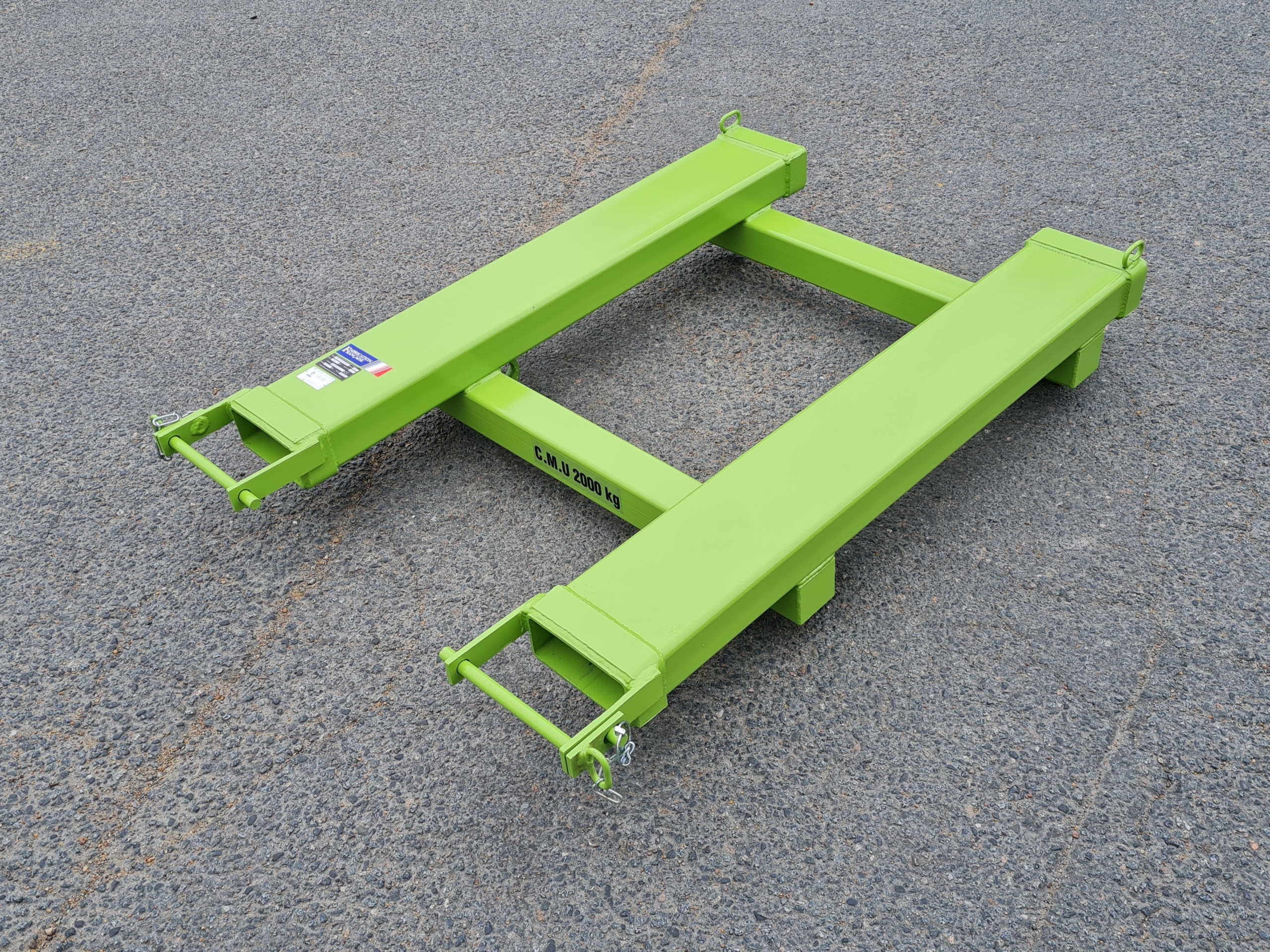

Big bag lifting beam

Secure handling. Approved by a control organization. 2 models.

proven

ATTENTION : Prior to use, accesory + forklift acceptance procedures must be carried out by your authorised inspection body.

REF. CRP50000 & CRP51000

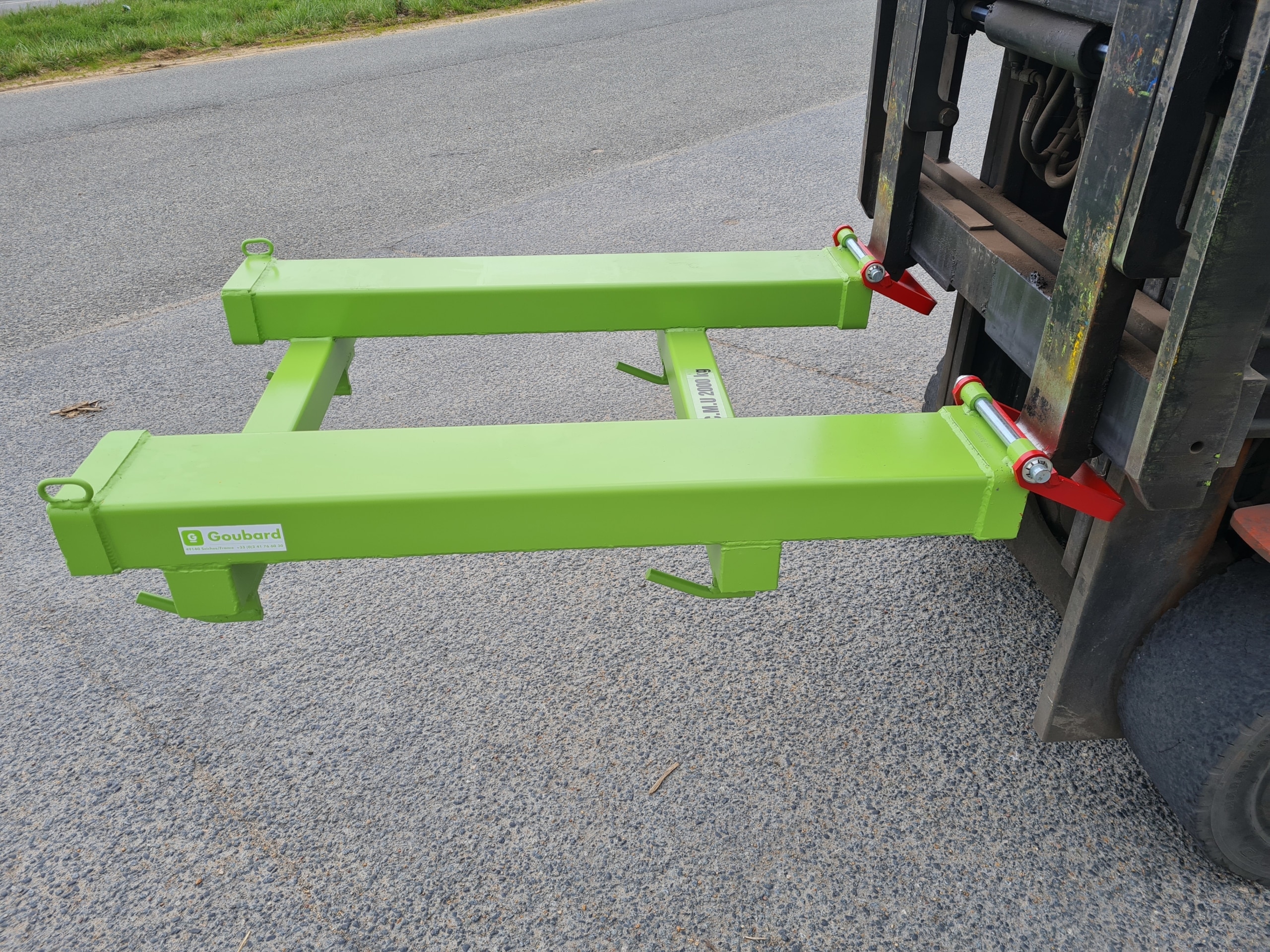

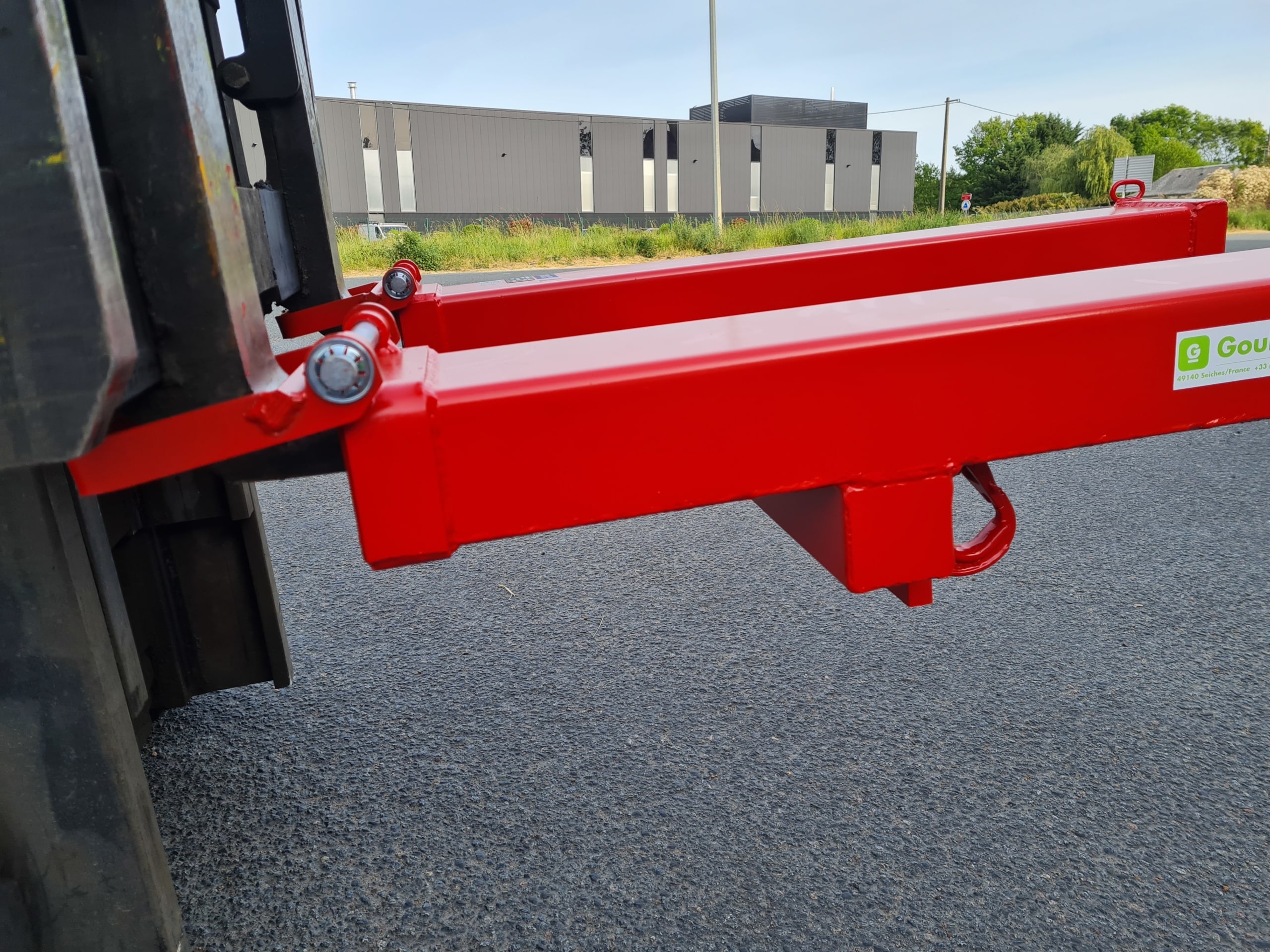

Direct mounting on forks with fork heel locking device
Fork sleeves 170 x 70 mm and fork spacing (F) can be modified on request
For more information, download the technical sheet below.

SHOW MORE INFORMATION

REQUEST A QUOTE DOWNLOAD TECHNICAL SHEET

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

A overall depth
B interior depth
C interior depth
I interior width
D overall height
D1 interior height
E maximum loading height
K overall height (when emptying)
F fork sleeves spacing

DOWNLOAD TECHNICAL SHEET

CHOOSE YOUR REFERENCES

Load kg	A	B	C	I	D	F	Weight kg	Reference

2000	1300	700	1000	700	250	700	80	CRP50000	Select one or more product references to request a quote
2000	1300	700	1000	700	250	700	80	CRP51000	Select one or more product references to request a quote

FINALIZE MY QUOTE REQUEST

A big bag lifter is essential for material handling. It ensures the safe handling of large bags. Certified by a control body, it complies with current safety standards.

Features of Our Big Bag Lifting Beams

Our big bag lifters for forklifts are available in two models to meet different needs:

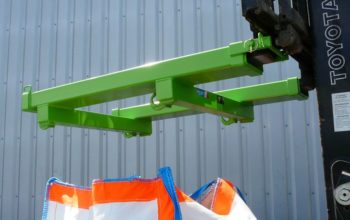

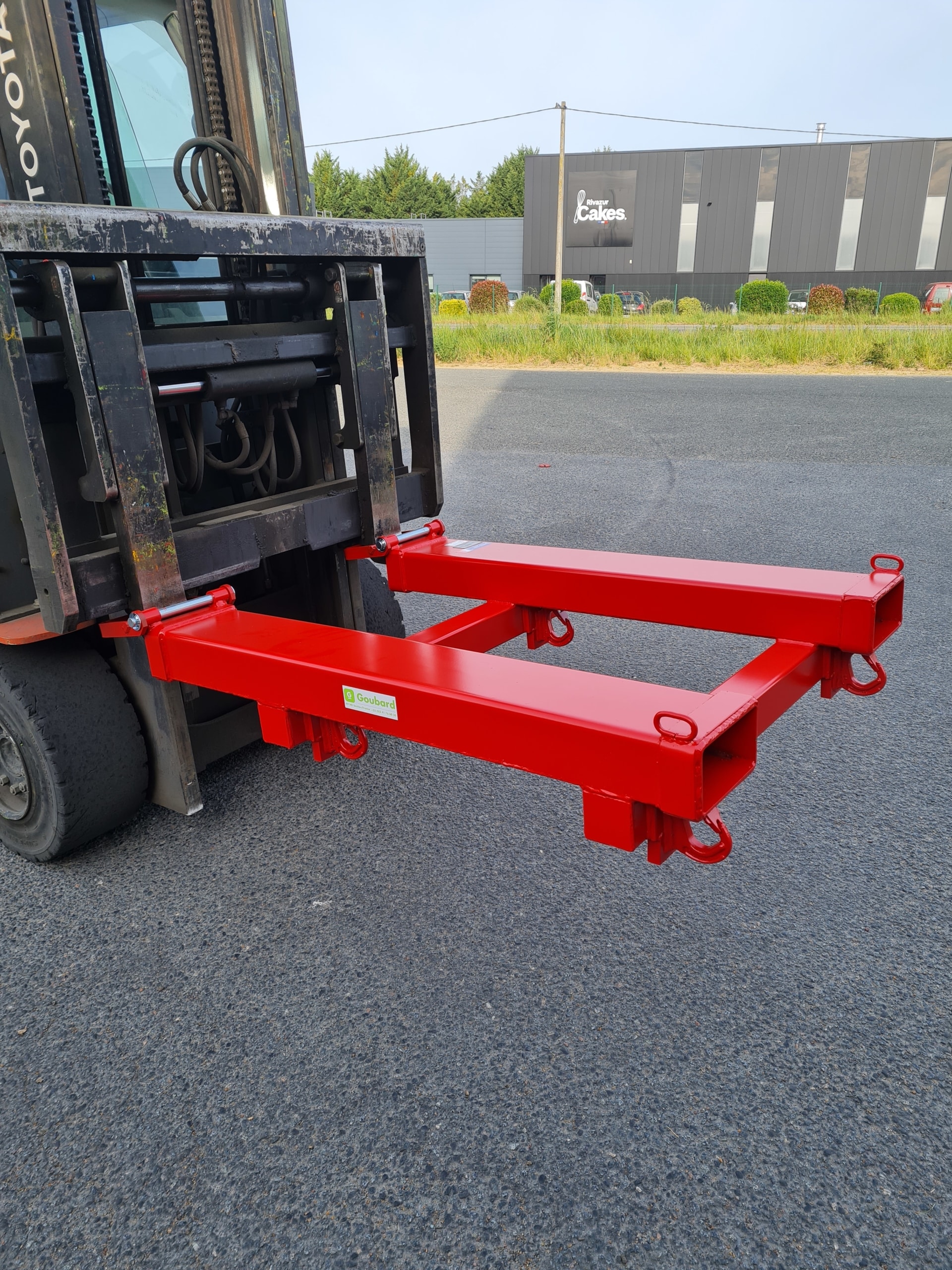

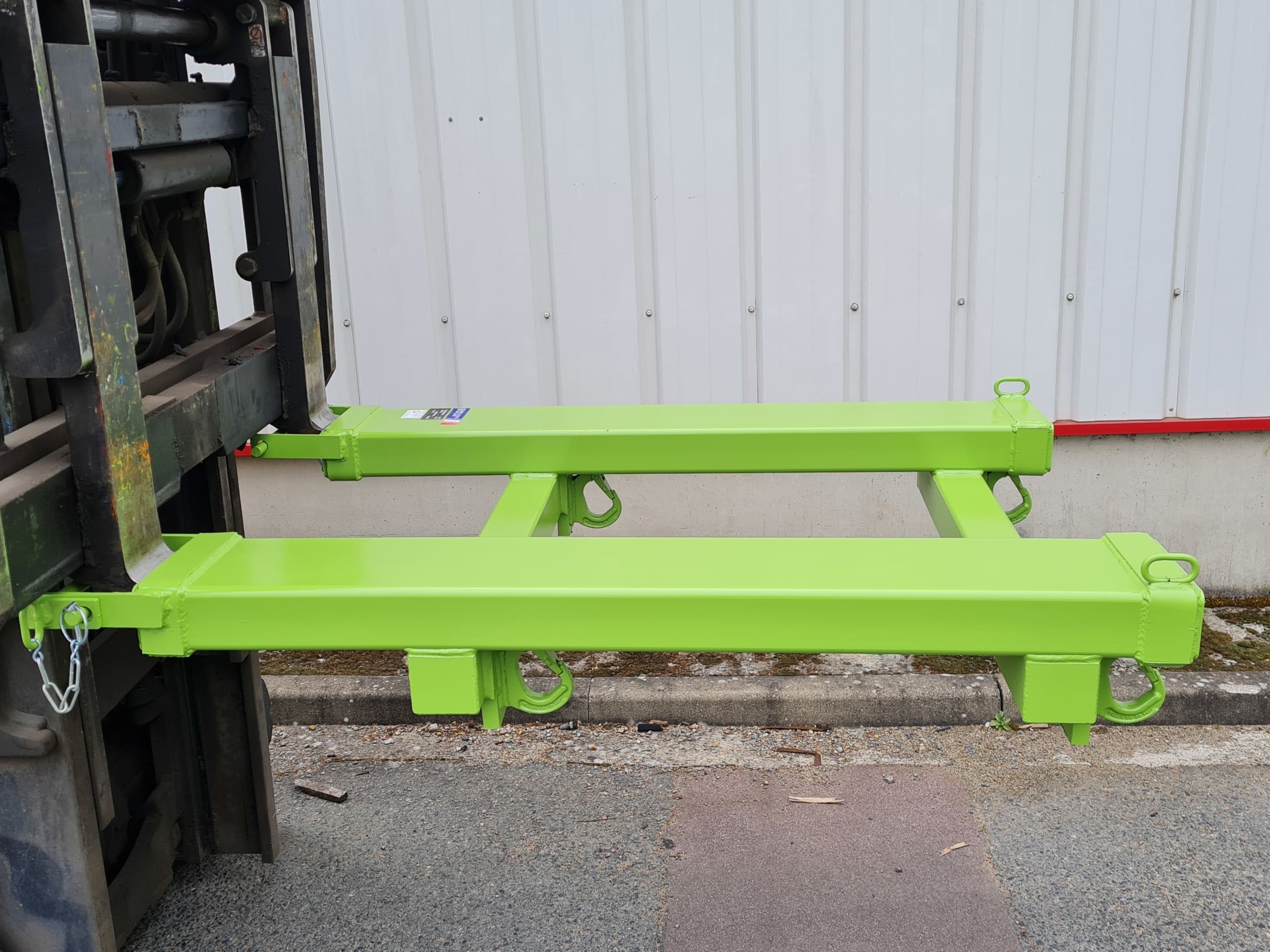

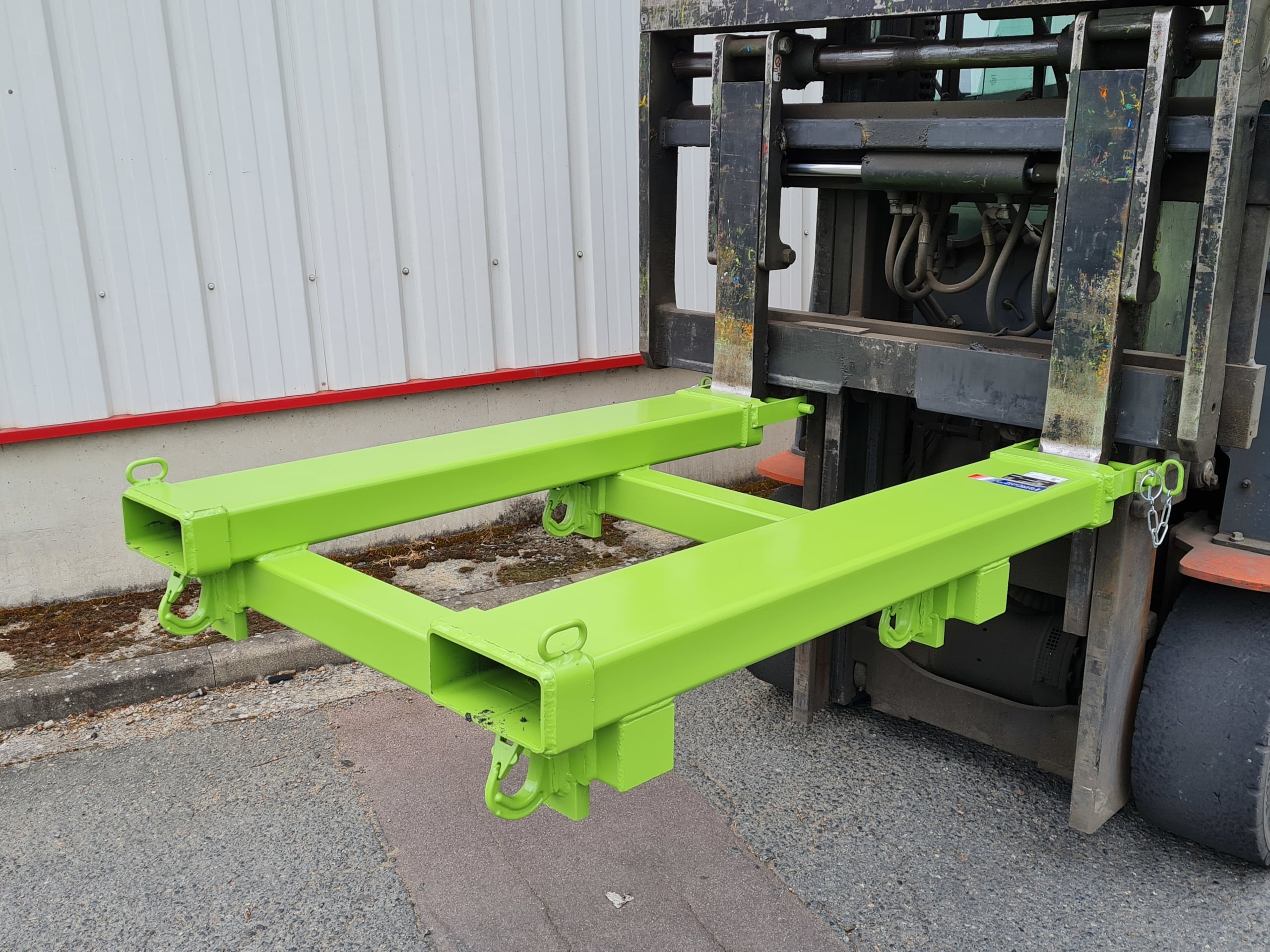

Fork-mounted spreader beam (CRP50000): 4 hooks with safety latches, maximum load capacity of 2000 kg.

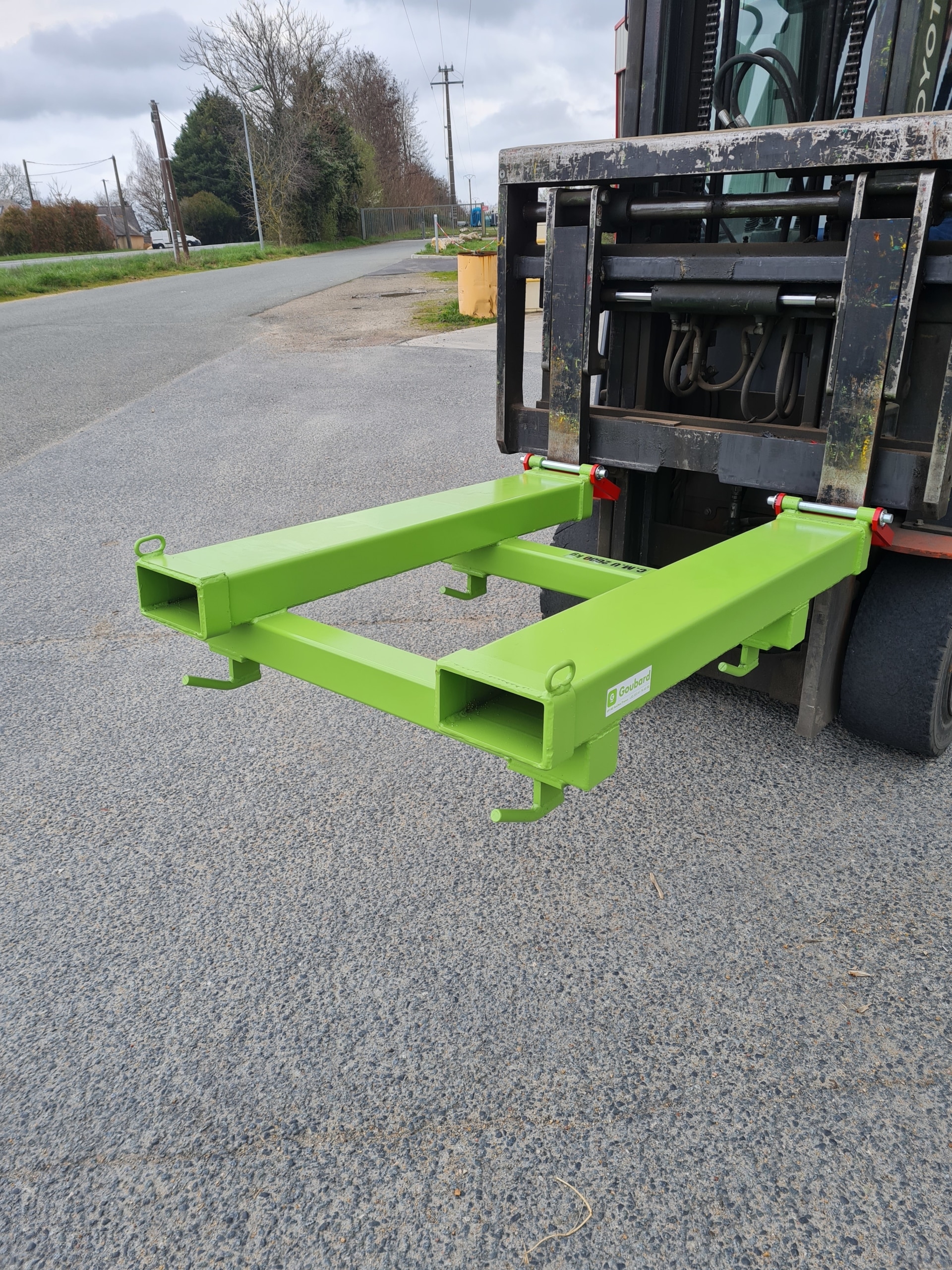

CRP51000 model: 4 quick-release hooks, also with a maximum load capacity of 2 tons.

These big bag lifters are mounted directly onto the forks of a forklift. The sleeve section is 170 x 70 mm and can be modified upon request. They are ideal for lifting large bags of fertilizer, grain, waste, etc.

Applications and Benefits of Our Big Bag Lifters for Forklifts and Trucks

Our big bag spreader beam for forklifts is an essential tool in various industrial sectors. It facilitates the loading and unloading of large bags containing bulk materials.

In the agricultural industry, it allows for the efficient handling of fertilizers and seeds, with a lifting capacity of up to 2,000 kg.

Our bulk bag lifting beam also optimizes warehouse logistics operations by enabling quick handling. The CRP50000 and CRP51000 models are equipped with heel locking systems, ensuring safe operations.

These two big bag lifting beams are certified, ensuring compliance with safety standards. They are compatible with different types of forklifts, with adjustable sleeve sections available upon request. Made from robust materials, these tools are designed to withstand tough working conditions, offering durability and longevity, even in corrosive environments.

Also Available: A Big Bag Lifter for Truck Cranes

In the construction sector, our cross lifting beam for cranes (ref. CRP40000) is ideal for unloading big bags from trucks or for hoist handling. Its maximum load capacity is 1,700 kg.

Stainless steel models are also perfect for the food industry, as they are corrosion-resistant.

On your quote request manually add
in the comments, the option you need

Other color

Other finishing

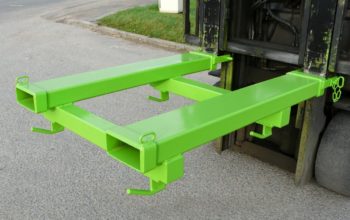

schéma palonnier support big bag prise fourche
