RB-1

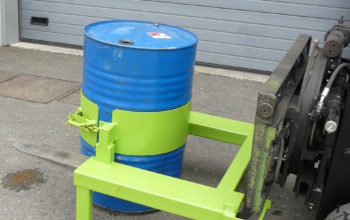

Barrel inverter for rotating head forklift – weight 70 kg

For standard metal barrels, 572 mm in diam. For handling, transportation and controlled draining of barrels. 3 models.

Réf. RBP10000

Permissible load 350 kg
Fork grip in sleeves with a int. cross-section of 170 x 70 mm
Fork end grip safety system with removable pin
Barrel is held in position by articulated steel belt and adjustable eccentric closure with safety pin
360 degree rotation with stops in all positions
special distance between forks, different barrel diameters (on request) depending on options
For more information, download the technical sheet below.

SHOW MORE INFORMATION

REQUEST A QUOTE DOWNLOAD TECHNICAL SHEET

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CHOOSE YOUR REFERENCES

Load kg	Weight kg	Reference

350	70	RBP10000	Select one or more product references to request a quote
