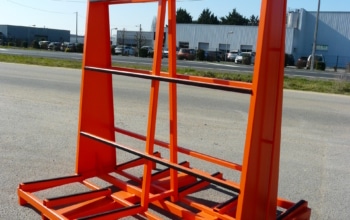

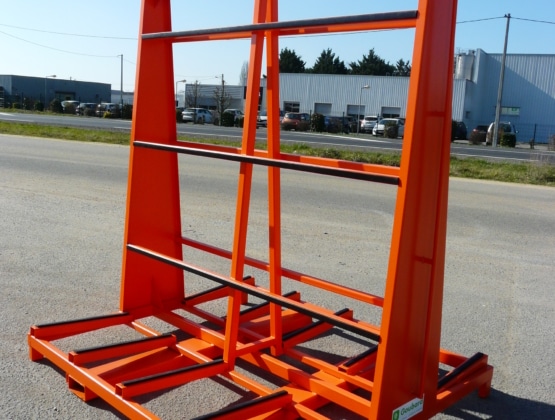

CH 15

Easel maximum load 3000 kg

For safely handling and transporting joinery, plates, etc. Approved by inspection authority. 3 models : 800 - 1500 -3000 kg

Ref. CHP15000

Easel with inclined supports
Support side rails and cross-members covered with interchangeable rubber section
1 central crane loading point ring
Forks inserted intro fork sleeves aperture 170 x 70 mm apert. and spacing (F) can be changed on request
2 vertical side ramps for fitting slings
For more information, download the technical sheet below.

SHOW MORE INFORMATION

REQUEST A QUOTE DOWNLOAD TECHNICAL SHEET

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

A overall depth
B interior depth
C interior depth
I interior width
D overall height
D1 interior height
E maximum loading height
K overall height (when emptying)
F fork sleeves spacing

DOWNLOAD TECHNICAL SHEET

CHOOSE YOUR REFERENCES

Load kg	A	B	C	I	D	D1	F	Fork sleeves ins.	Weight kg	Reference

3000	1700	580	2120	2000	2430	2130	800	170 x 70	305	CHP15000	Select one or more product references to request a quote

FINALIZE MY QUOTE REQUEST

Icone information

On your quote request manually add
in the comments, the option you need

Other color

Other finishing

Can't find the model
that's right for you?

We are adapting!

REQUEST A SPECIFIC MODEL

You have a question?

call us at+ 33 2 41 76 36 52

Or contact us by e-mail

CONTACT US

THE TEST OF A UNIQUE GOUBARD OFFER

To be sure of your choice, Goubard offers you the possibility of testing before committing yourself. 95% of customers who test our products buy them later!

Slogan Goubard

Photo rappel

WE WILL ANSWER YOU
WITHIN 24 HOURS

I WISH TO BE CALLED BACK

SIMILAR PRODUCTS

Muti-function hitching

All-in-one tool – inspection body approved For fitting...

Big-bag loader A

For transporting Big-Bags. Direct mounting on forks of...

Big-bag loader upper grip load 2t on 2 hooks

Safe handling of Big-Bags. Direct mounting on forks. 2...

Lifting jib 1 hook

Quickly transforms your forklift into a lifting...

Easel maximum load 1500 kg

For safely handling and transporting joinery, plates,...

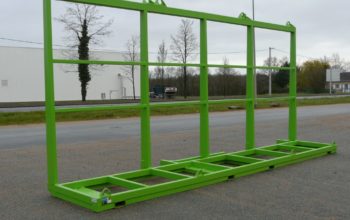

Easel maximum load 800 kg

For safely handling and transporting joinery, plates,...

Barrel upper grip inverter – weight 130 kg

For standard metal barrels, 572 mm in...

Barrel inverter for rotating head forklift – weight 70 kg

For standard metal barrels, 572 mm in...

Potence de levage à flèche télescopique

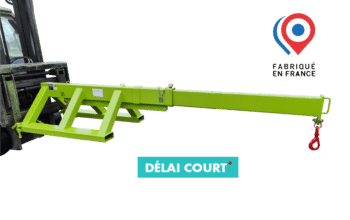

Adjustable lifting jib
