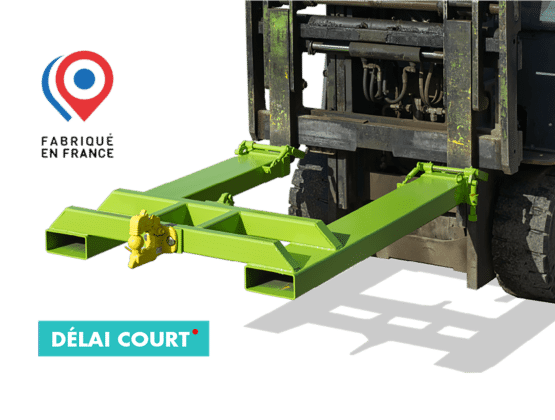

Muti-function hitching

All-in-one tool – inspection body approved For fitting on forklift forks.

handy

best-seller

proven

ATTENTION : Prior to use, accesory + forklift acceptance procedures must be carried out by your authorised inspection body.

AMP05000
— Fork pick-up in guides with an inside section of 170×70 – centre distance 800mm
— Static vertical load on the combination hook: 375kg
— Maximum towable load on the ball hitch: 3T5
— 2T load on the inner lifting hook
— Fork guides, length 1250mm
— Weight 80kg

For more information, download the technical sheet below.

Forklift hitch attachments

SHOW MORE INFORMATION

REQUEST A QUOTE DOWNLOAD TECHNICAL SHEET

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

CAPACITY & DIMENSIONS

AVAILABLE OPTIONS

ALL PHOTOS

A overall depth
B interior depth
C interior depth
I interior width
D overall height
D1 interior height
E maximum loading height
K overall height (when emptying)
F fork sleeves spacing

DOWNLOAD TECHNICAL SHEET

CHOOSE YOUR REFERENCES

A	C	D	Center to center forks	Fork sleeves ins.	Weight kg	Reference

1516	1068	240	800	170 X 70	80	AMP05000	Select one or more product references to request a quote
