Dumping by simply tilting the forks Max load...
BT

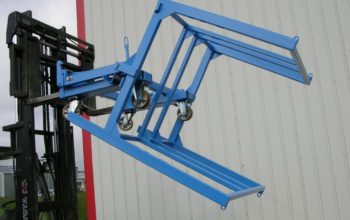

SKIP FOR TELESCOPIC FORK-LIFT
GCM
Tipping frame
Suitable for transporting long products. Timber slabs, cardboard, mandrels, etc.
for long loads
non-watertight
- Volume : 1300 dm3
- Tubular frame with gusset plates
- Sheet metal version or wire mesh version
- Sides open
- Safety latch for transport (disengage before tipping)
- Lever for manual tipping
- Fork sleeves can be modified on request.
5mm sheet metal. Aperture : 170 x 70mm.
Spacing : 900mm. - Pedestal-mounted models can be used with pallet trucks between fork sleeves
- Castor-mounted models (forward movement) have 2 fixed + 2 pivoting
Ø160mm alu/polyurethane castors and a handrail - Safety chain included
- For customised products, please contact us.
- Options on request
CAPACITY & DIMENSIONS
AVAILABLE OPTIONS
ALL PHOTOS
CHOOSE YOUR REFERENCES
| Capacity dm³ | Load kg | Castors Ø | Lateral overall | Lateral interior | Forward overall | Forward interior | Overall height | Weight kg | Reference | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1300 | 2000 | 1265 | 1050 | 1300 | 1200 | 1400 | 148 | GCP00000 | Select one or more product references to request a quote |
|
| 1300 | 1800 | 160 | 1265 | 1050 | 1300 | 1200 | 1520 | 160 | GCP00161 | Select one or more product references to request a quote |
On your quote request manually add
in the comments, the option you need
Deceleration cylinder
Hydraulic tipping
Special sleeves
Other color
Special sleeves
Can't find the model that's right for you?
Made to measure
